Architecture documentation

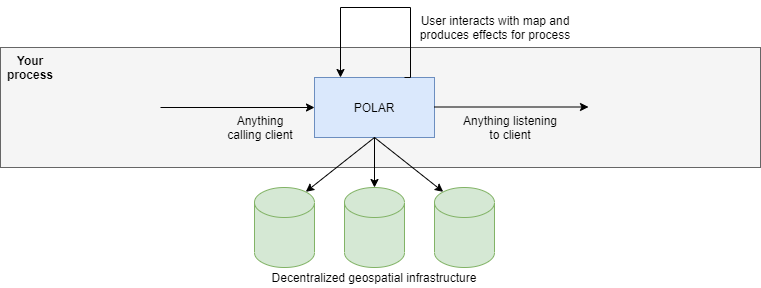

User perspective

When using POLAR, it behaves a simple fragment that can be used in any web-based setting. It may either work standalone, in which case there are only inputs for configuration, or as a part of a process, in which case there are both inputs and outputs for further processing.

The purpose of POLAR is to handle all geospatial interactions of a user and utilize the decentralized geospatial infrastructure for that end.

Viewn from the outside, POLAR is just a component

Usage examples

POLAR is designed to increase application efficiency and correctness for the public sector, but may be used in any form process or as a standalone map client. The provided visualisations ease communication between citizens and administrative staff, allowing them to effectively share the where.

POLAR is already in use for ...

• ... citizens to ...
  • communicate parcel data in applications.
  • mark their current position for reports.
  • read information on water levels, bathing spots, and much other public information.
• ... officials in charge to ...
  • coordinate city services regarding reports.
  • present governmental data to the public.
  • manage and update department geospatial data.
• ... developers to ...
  • heavily reduce implementation time.
  • easily use geospatial systems without domain expertise.
  • use POLAR as component in low code platforms.

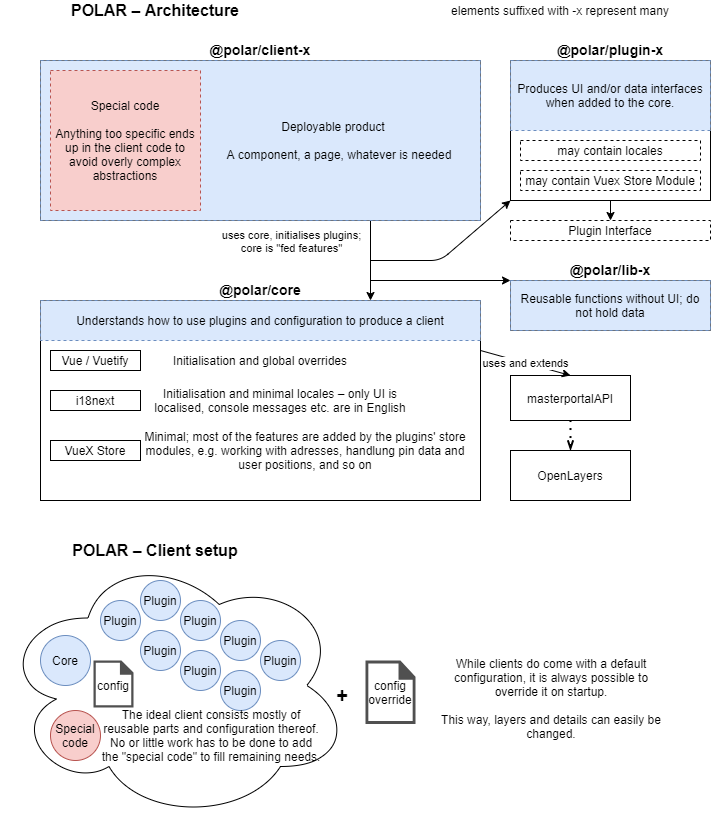

Inner architecture

On the inside, POLAR is constructed from many smaller and isolated packages that each encapsulate a specific part of the business logic. These parts can be mixed and matched, and are easily replacable for situations where further extension would make them overly complicated.

For client-specific business logic, this can be placed in the very client itself to prevent bloat in other parts of the product.

All in all, this makes POLAR a versatile map client factory.

Viewn from the inside, POLAR is a map client factory
